Terminal operator

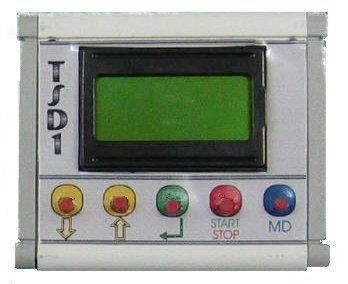

TSD1 user terminal is a device destine for interfacing systems devoid of display and keyboard, therefore without the possibility of showing messages to the operator and receiving command strings from it.
Typical application as small keyboard for drivers, usable for modifying parameters or showing status message too.
However employable any time is wanted to free the operator from using an external P.C.

• Typology: RS232 user terminal
• Visualization: alpha-numerical back-lighted LCD display, 2 strings 16 characters each
• Keyboard: polycarbonate, 5 keys
• Feeding: 24V.c.c. 0.1A
• Mass storage: microcontroller with programmable flash memory
• Communication: one RS232 line
• Standard software: interface connection with brushless drives DB1 and C.C. drives DSA
• Customizations: customizable front panel and software reworking for others devices
